Send a representative request through the application and confirm that its trace is visible in OpsRamp.
Check the application and exporter
- Trigger a request that exercises the instrumented operation.
- Confirm the application emits spans with the intended
service.name. - Check application, Collector, or trace-proxy logs for endpoint, DNS, TLS, authentication, or export errors.
- If available, record the trace ID from application logs or a response header so you can locate the same trace in the UI.

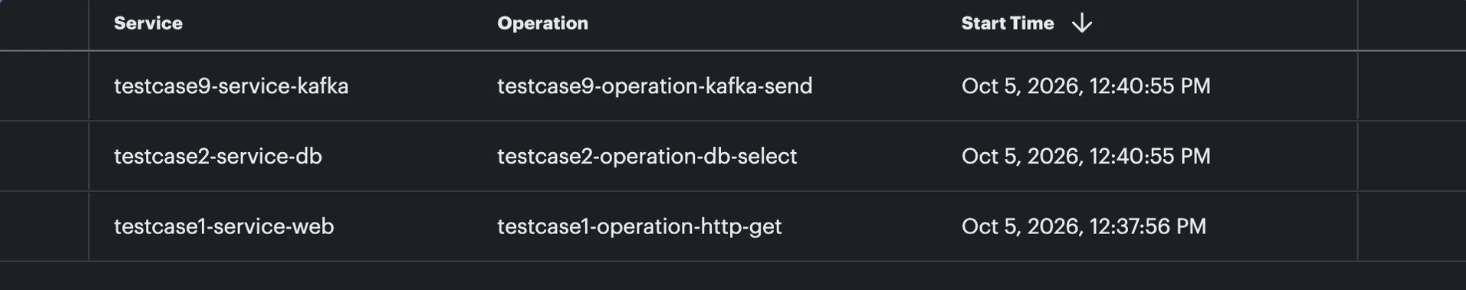

Find the trace in OpsRamp
- Open the trace views for the intended client/tenant with a user who has
TRACE_VIEWaccess. - Select a time range that includes the test request.
- Filter by the application’s service name or search using the trace ID.
- Open the result and confirm that expected spans, parent-child relationships, timing, and status are present.
Trace visibility can be affected by the configured collection path, export batching, and trace-proxy sampling rules. Check those settings before concluding that a missing trace indicates an application instrumentation failure.
Troubleshoot
| Symptom | Check |
|---|---|
| No export attempts | Confirm the SDK is initialized, spans are created, and the exporter is configured for traces. |
| Connection or timeout errors | Check endpoint spelling, DNS, port reachability, firewall rules, and proxy routing. |
| TLS errors | Confirm the endpoint's TLS configuration and that the runtime trusts the issuing certificate. |
| Authentication or tenant errors | Verify the credential type, tenant ID, required headers, and endpoint against the tenant's Trace Setup instructions. |
| Trace is present but service is unexpected | Set a stable service.name and confirm it is passed by the SDK. |
| Some spans are absent | Check sampling configuration, exporter batching, and whether the test exercised the expected downstream operations. |
If the issue persists, collect a trace ID, approximate timestamp, service name, selected collection path, and redacted exporter error. Never attach credentials or unredacted secret-bearing configuration to a support request.
