Create a Resource Tile

  1. From Dashboard > Dashboard 2.0, create a new dashboard or select from an existing dashboard collection.

    See Create Dashboards to learn about creating dashboards.

  2. Click CREATE TILE or + from the toolbar.

  3. In the ADD TILE screen that appears, select RESOURCE.

List Value of Alert Tile Dashboard View

The following screen is displayed:

List Value of Alert Tile Dashboard View
  1. Click the + QUERY and select the attributes from the drop-down list as you build the query. Click the + button to add additional attributes.

    Note: You can combine multiple filters together to view only the required alerts. The query is completed and the results are displayed in the preview graph.

  2. Alternatively, click </> to use the advanced query builder.
    Note: Click </> again to close the advanced query field and switch back to the basic query builder format.

  3. Enter a query or click inside the box to see a list of OpsQL attributes.

  4. Click the optional Legend icon and enter {{ in the EDIT LEGEND field to see a list of options.

  5. Select the visualization from the following options:

Chart TypeDescription
PieDisplays a pie chart.
Single ValueDisplays a single value.
ListDisplays values in a list format.
BarDisplays the bar representation of the values
GeoDisplays the geographical location of the resource.

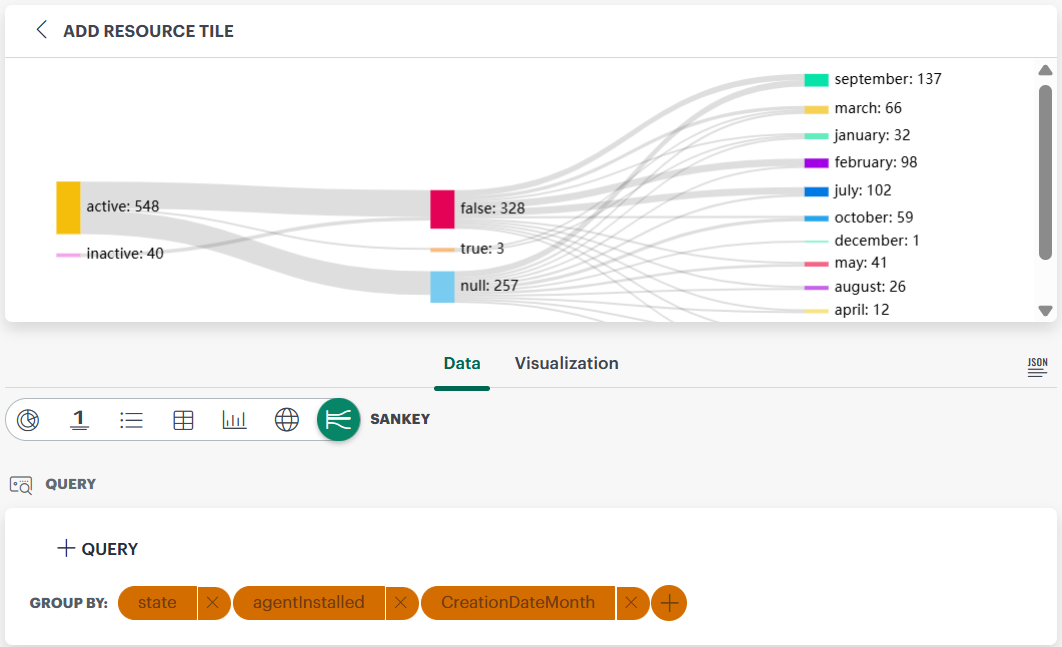

  1. From the GROUP BY option, select an attribute. You can select up to two attributes.

    Note: In the List visualization, the second attribute values are displayed in a multi-column colored list.
    The following is a sample illustration of a multi-column list:

List Value of Alert Tile Dashboard View
  1. Enable the Split subgroups toggle to view each grouping as a separate row.
    Notes:
    • The multi-column list and split subgroup options are available for List chart only.
    • The colors are displayed based on the default color categorization of alerts.
    • Click the count or any column in the multi-column list to drill down and see the contextual list of alerts in the alerts browser.
  2. Click the Visualization tab to customize the visualization further:
    • HEADER: Set a name, color, size, and alignment for the header.
    • Grid Lines: Select the color of the grid lines, enable or disable the grid lines by clicking the toggle ON or OFF, Grid Lines option.
      Note: By default the Grid Lines is enabled.
    • Background Color: Select the background color, enable or disable the background color by clicking the toggle ON or OFF background color.
      Note: By default the Background Color is disabled.
    • Attribute: Select the color for the attribute, the size, bold or Italics.
List Value of Alert Tile Dashboard View
  1. Click CREATE. The Resource tile is created and displayed on the main dashboard page.

Examples

The following are example illustrations for each visualization:

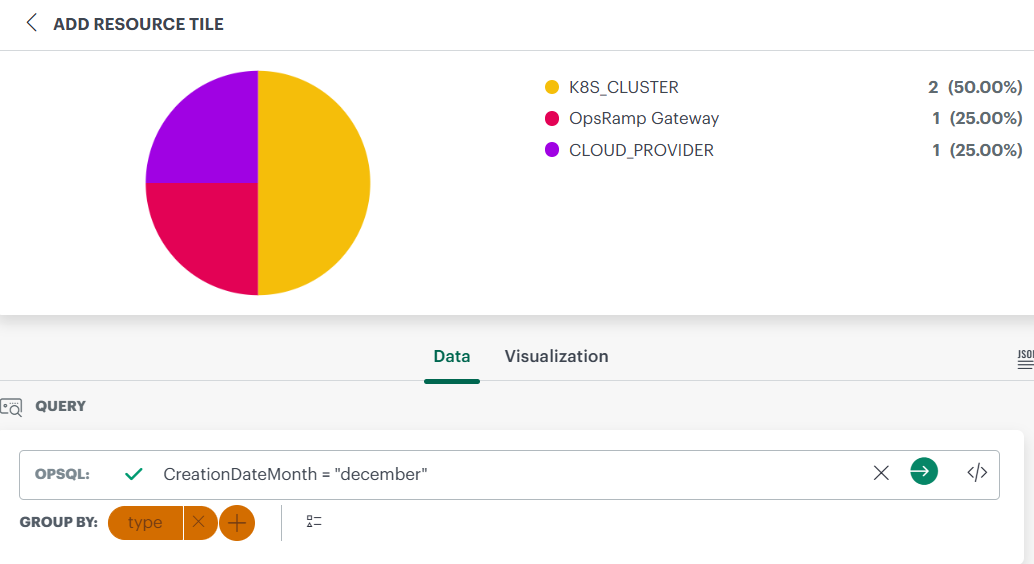

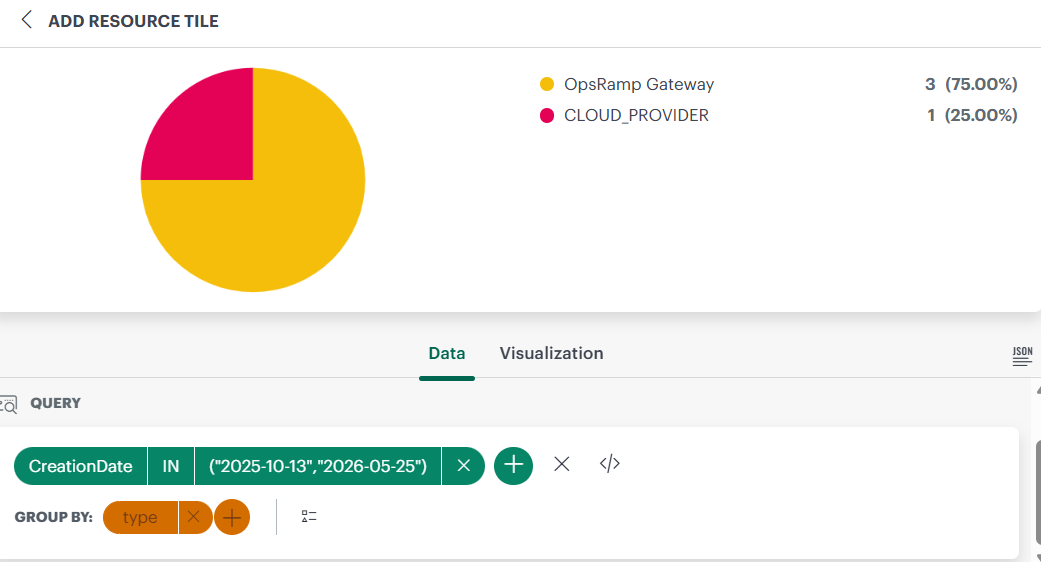

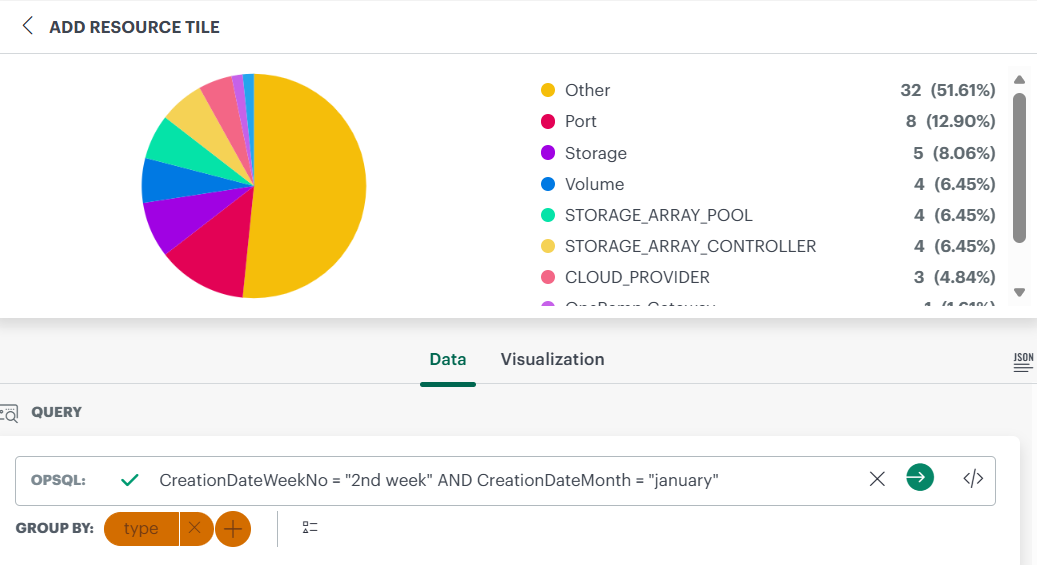

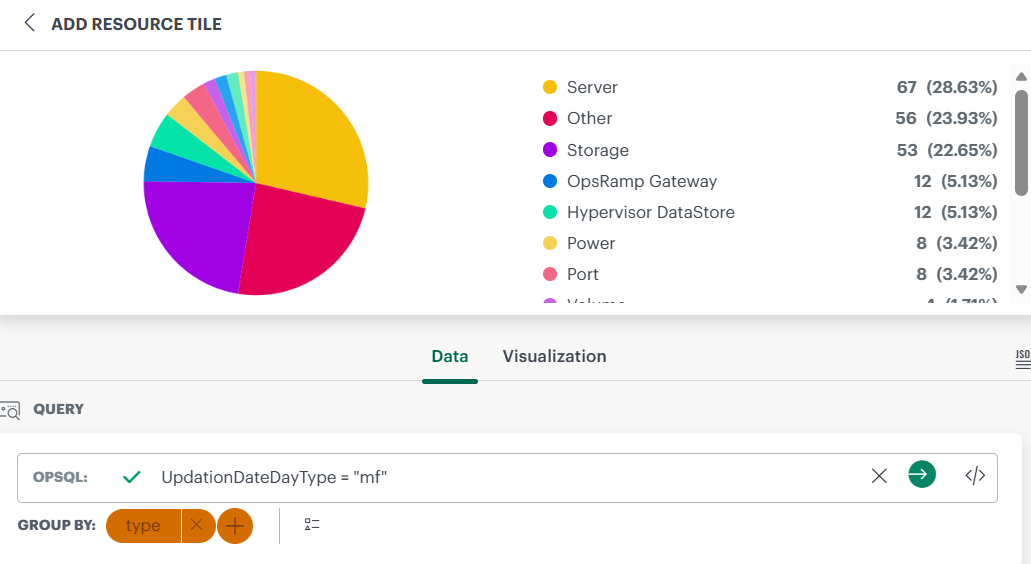

PIE visualization

The following is the PIE chart visualization with the inputs:

  • Attribute - entityType = RESOURCE
  • Group By
    • Attribute 1 = availabilityState
    • Attribute 2 = nativeType
  • Legend - {{nativeType}}
List Value of Alert Tile Dashboard View

PIE dashboard view

The following is the PIE chart dashboard view:

List Value of Alert Tile Dashboard View

SINGLE VALUE visualization

The following is the SINGLE VALUE visualization with the inputs:

  • Attribute - entityType = NON_MON_RESOURCE
List Value of Alert Tile Dashboard View

SINGLE VALUE dashboard view

The following is the SINGLE VALUE dashboard view:

List Value of Alert Tile Dashboard View

LIST visualization

The following is the LIST visualization with the inputs:

  • Attribute - entityType = RESOURCE AND hasRelationship = true
  • Group By
    • Attribute 1 = type
    • Attribute 2 = aliasName
  • Split subgroups = enabled
  • Dashboard time range = All Tickets
List Value of Alert Tile Dashboard View

The Split subgroups toggle switch displays results with the attribute name. The following is a sample illustration:

List Value of Alert Tile Dashboard View

LIST dashboard view

The following is the LIST dashboard view:

List Value of Alert Tile Dashboard View

BAR visualization

The following is the BAR visualization with the inputs:

  • Attribute - entityType CONTAINS NON_MON_RESOURCES
  • Group By
    • Attribute 1 = type
    • Attribute 2 = clientName
List Value of Alert Tile Dashboard View

Notes:

  • Select Horizontal or Vertical representation of the data from the Orientation dropdown list box in the Visualization tab.
    Note: By default the Horizontal axis is enabled.
  • Click the stacked bar to display the multiple group information.
  • Per query, Time Series tile displays up to 30 series which are mapped to the order of this color chart. You may click a swatch to edit color or click + drag to reorder.
  • You may enable and disable a legend by clicking the name/color of the specific legend.
  • Click Go Back to return to the view all the legend.

BAR dashboard view

The following is the BAR dashboard view:

Horizontal Axis view

List Value of Alert Tile Dashboard View

Vertical Axis View

List Value of Alert Tile Dashboard View

Sites

Use the location attribute to query sites in the Resource tile.

The following example shows location wise and resource type wise resources whose operating system contains “ubuntu”.

Query: os CONTAINS ubuntu
Group By: location and type

Resource-tile-sites-location

Geomap Visualization View

The Geomap visualization feature enables users to efficiently analyze and understand location-specific data with a quick glance. By integrating a Geomap into Dashboard 2.0, users can visually depict the distribution of resources based on site location.

For users interested in viewing resources scattered across locations, it is recommended to associate the resource with a site. Refer to the Group Resources by Location documentation to learn more about creating a site and effectively managing resource grouping based on their geographical locations.

The following is the visualization with the inputs:

  • Group By: location
Resource Geofunctionality

Notes:

  • You can zoom in on the map, by clicking the + icon and zoom out by clicking the - icon on the bottom right corner.
  • Click the location to VIEW RESOURCE of that location.
Resource Geofunctionality
  • To understand more about the availability of a particular resource in a particular site, let us consider the following example:

    • Group By: availabilityState
Resource Geofunctionality

The status is displayed as both label (text) and numeric value. The following are the values:

  • Unmonitored
  • Up
  • Down
  • Unknown
  • Undefined
Resource Geofunctionality
