Supported Target Versions
Validating on HPE Alletra 9000 and MP device.

Application Version Details

Application VersionBug fixes / Enhancements
  • Added support for new Native types(Cage,Node,Adapter,Battery) and corresponding metrics.
  • While upgrading the application to 2.0.0 or above versions, please uncheck HPE Alletra FC Switches, HPE Alletra Port Devices in configuration page and then upgrade the application.
1.0.0Initial version with discovery, monitoring, alerts.


HPE Alletra MP/9000 Series is ideally suited for mission-critical workloads with extreme sensitivity to latency and high availability requirements. It is particularly well-suited for environments that demand a compact data center footprint.

It resolves the agility versus reliability trade-off inherent in the choice between the public cloud and traditional enterprise storage by delivering a modern, as-a-service experience through HPE GreenLake. This experience is further enhanced by intelligence and automation that ensure applications are always available and operational.

This platform features a unique, massively parallel, multi-node, and all-active architecture, with all volumes active across all media, controllers, and host ports. It allows for limitless scalability when consolidating both traditional and next-generation mission-critical applications, offering predictable performance and ultra-low latency, all supported by a 100% availability guarantee. Additionally, it simplifies and reduces the costs associated with business continuity and disaster recovery through fully Active Bidirectional Replication.


  • OpsRamp Classic Gateway 14.0.0 and above.
  • OpsRamp NextGen Gateway 14.0.0 and above.
    Note: OpsRamp recommends using the latest Gateway version for full coverage of recent bug fixes, enhancements, etc..
  • Provided IpAddress/hostname, Credentials should work for both WS APIs and SSH communication.

Hierarchy of HPE Alletra

Following are the component structure for MP:

HPE Alletra Storage System

    • HPE Alletra Physical Disk
    • HPE Alletra Common Provisioning Group
            • HPE Alletra Storage Volume
                  • HPE Alletra VLUN
    • HPE Alletra Cage
            • HPE Alletra Node
                  • HPE Alletra Adapter
                          • HPE Alletra Port
    • HPE Alletra Host

Following are the component structure for 9000:

HPE Alletra Storage System

    • HPE Alletra Physical Disk
    • HPE Alletra Common Provisioning Group
            • HPE Alletra Storage Volume
                  • HPE Alletra VLUN
    • HPE Alletra Cage
            • HPE Alletra Node
                  • HPE Alletra Adapter
                          • HPE Alletra Port
                  • HPE Alletra Battery
    • HPE Alletra Host

Supported Metrics

Click here to view the supported metrics
Native TypeMetric NamesDisplay NameMetric LabelUnitApplication VersionDescription
HPE Alletra Storage Systemhpe_alletra_APIStatsHPE Alletra API StatisticsUsage2.0.0Provides the number of API calls made within the frequency and resources
hpe_alletra_event_StatisticsHPE Alletra Event Statistics2.0.0Provides HPE Alletra Event Statistics
hpe_alletra_system_license_StateHPE Alletra System License StateAvailability2.0.0Enabled or disabled state of individual license. Values map: Enabled -1, Disabled-2.
hpe_alletra_system_node_online_statusHPE Alletra System Node Online StatusAvailability2.0.0Online or Offline status of individual node. Values map: Online -1, Offline -0
hpe_alletra_system_capacity_AllocatedMiBHPE Alletra System Allocated CapacityUsageMiB2.0.0Total allocated capacity.
hpe_alletra_system_capacity_UtilizationHPE Alletra System Capacity UtilizationUsage%2.0.0System Capacity Utilization
hpe_alletra_system_capacity_FailedMiBHPE Alletra System Failed CapacityUsageMiB2.0.0Failed capacity in MiB
hpe_alletra_system_capacity_OverProvisionedVirtualSizeMiBHPE Alletra System OverProvisionedVirtualSize CapacityUsageMiB2.0.0System contains an over provisioned Virtual Size MiB.
hpe_alletra_system_capacity_OverProvisionedUsedMiBHPE Alletra System OverProvisionedUsed CapacityUsageMiB2.0.0System contains an over provisioned used MiB.
hpe_alletra_system_capacity_OverProvisionedAllocatedMiBHPE Alletra System OverProvisionedAllocated CapacityUsageMiB2.0.0System contains an over provisioned allocated MiB.
hpe_alletra_system_capacity_OverProvisionedFreeMiBHPE Alletra System OverProvisionedFree CapacityUsageMiB2.0.0System contains an over provisioned free MiB.
hpe_alletra_cacheMemoryStatistics_HitIOHPE Alletra HitIO CacheMemoryStatisticsPerformancepsec2.0.0Number of Read/Write I/Os per second where data is in cache.
hpe_alletra_cacheMemoryStatistics_MissIOHPE Alletra MissIO CacheMemoryStatisticsPerformancepsec2.0.0Number of Read/Write I/Os per second where data is not in cache.
hpe_alletra_cacheMemoryStatistics_AccessIOHPE Alletra AccessIO CacheMemoryStatisticsPerformancepsec2.0.0Number of read/write I/Os per second.
hpe_alletra_cacheMemoryStatistics_HitPctHPE Alletra HitPct CacheMemoryStatisticsPerformance%2.0.0Hits divided by accesses and displayed in percentage
hpe_alletra_cacheMemoryStatistics_TotalAccessIOHPE Alletra TotalAccessIO CacheMemoryStatisticsPerformancepsec2.0.0Number of total read and write I/Os per second.
hpe_alletra_cacheMemoryStatistics_LockBulkIOHPE Alletra LockBulkIO CacheMemoryStatisticsPerformancepsec2.0.0Number of pages modified per second by host I/O and written to disk by the flusher.
hpe_alletra_cacheMemoryStatistics_PageStatesHPE Alletra PageStates CacheMemoryStatisticsPerformancecount2.0.0Information on page states.
hpe_alletra_cacheMemoryStatistics_DirtyPagesHPE Alletra DirtyPages CacheMemoryStatisticsPerformancecount2.0.0Current number of dirty cluster memory pages per device type class in the system.
hpe_alletra_cacheMemoryStatistics_MaxDirtyPagesHPE Alletra MaxDirtyPages CacheMemoryStatisticsPerformancecount2.0.0Maximum allowed number of dirty cluster memory pages per device type class in the system.
hpe_alletra_cacheMemoryStatistics_DelayAckPagesHPE Alletra DelayAckPages CacheMemoryStatisticsPerformancecount2.0.0Number of delayed acknowledgments (per device type class)
to the host in order to throttle the host IO writes due to cache resource constraints.
hpe_alletra_cpuStatistics_UserPctHPE Alletra UserPct CpuStatisticsUsage%2.0.0Percent of CPU time in user-mode.
hpe_alletra_cpuStatistics_SystemPctHPE Alletra SystemPct CpuStatisticsUsage%2.0.0Percent of CPU time in system-mode.
hpe_alletra_cpuStatistics_IdlePctHPE Alletra IdlePct CpuStatisticsUsage%2.0.0Percent of CPU time in idle.
hpe_alletra_cpuStatistics_InterruptsPerSecHPE Alletra InterruptsPerSec CpuStatisticsPerformancepsec2.0.0Number of interrupts per second.
hpe_alletra_cpuStatistics_ContextSwitchesPerSecHPE Alletra ContextSwitchesPerSec CpuStatisticsPerformancepsec2.0.0Number of context switches per second.
hpe_alletra_diskDrive_StateHPE Alletra DiskDrive StateAvailability2.0.0State of the PD, can be one of the following. normal : 0,new : 1,degraded : 2,failed : 3
HPE Alletra Common Provisioning Grouphpe_alletra_cpgSpaceData_TotalUsedSpaceMiBHPE Alletra CpgSpaceData Total Used SpaceUsageMiB2.0.0Total Used CPG space in MiB
hpe_alletra_cpgSpaceData_UserUsedSpaceMiBHPE Alletra CpgSpaceData User Used SpaceUsageMiB2.0.0User Used CPG space in MiB
hpe_alletra_cpgSpaceData_SnapUsedSpaceMiBHPE Alletra CpgSpaceData Snap Used SpaceUsageMiB2.0.0Snap Used CPG space in MiB
hpe_alletra_cpgSpaceData_AdminUsedSpaceMiBHPE Alletra CpgSpaceData Admin Used SpaceUsageMiB2.0.0Admin Used CPG space in MiB
hpe_alletra_cpgSpaceData_TotalUsedSpaceUtilizationHPE Alletra CpgSpaceData Total Used Space UtilizationUsage%2.0.0Total Used CPG space Percentage
hpe_alletra_cpgSpaceData_UserUsedSpaceUtilizationHPE Alletra CpgSpaceData User Used Space UtilizationUsage%2.0.0User Used CPG space Percentage
hpe_alletra_cpgSpaceData_SnapUsedSpaceUtilizationHPE Alletra CpgSpaceData Snap Used Space UtilizationUsage%2.0.0Snap Used CPG space Percentage
hpe_alletra_cpgSpaceData_AdminUsedSpaceUtilizationHPE Alletra CpgSpaceData Admin Used Space UtilizationUsage%2.0.0Admin Used CPG space Percentage
hpe_alletra_cpgSpaceData_base_PrivateSpaceMiBHPE Alletra CpgSpaceData Base Private SpaceUsageMiB2.0.0Base Private CPG space in MiB
hpe_alletra_cpgSpaceData_snapshot_PrivateSpaceMiBHPE Alletra CpgSpaceData Snapshot Private SpaceUsageMiB2.0.0Snapshot Private CPG space in MiB
hpe_alletra_cpgSpaceData_GrowthMiBHPE Alletra CpgSpaceData GrowthUsageMiB2.0.0CPG space increase in MiB.
hpe_alletra_cpgSpaceData_DeduplicationGcKBPSHPE Alletra CpgSpaceData Deduplication GcPerformanceKBps2.0.0Deduplication Garbage Collector in KBPS.
hpe_alletra_cpgSpaceData_CapacityEfficiencyHPE Alletra CpgSpaceData CapacityEfficiencyPerformance2.0.0Capacity efficiency attributes.
hpe_alletra_cpgStatistics_IOHPE Alletra IO CpgStatisticsPerformancepsec2.0.0Number of IO per second, which includes read, write, and total.
hpe_alletra_cpgStatistics_KbytesHPE Alletra Kbytes CpgStatisticsPerformanceKBps2.0.0Number of kilobytes per second, which includes read, write, and total.
hpe_alletra_cpgStatistics_ServiceTimeMSHPE Alletra ServiceTimeMS CpgStatisticsPerformancems2.0.0Service time in ms, which includes read, write, and total.
hpe_alletra_cpgStatistics_IOSizeKBHPE Alletra IOSizeKB CpgStatisticsPerformanceKB2.0.0Object IO size in kilobytes, which includes read, write, and total.
hpe_alletra_cpgStatistics_QueueLengthHPE Alletra QueueLength CpgStatisticsPerformance2.0.0Queue length
hpe_alletra_cpgStatistics_BusyPctHPE Alletra BusyPct CpgStatisticsPerformance%2.0.0Busy percentage
hpe_alletra_cpg_stateHPE Alletra CPG StateAvailability2.0.0Overall state of the CPG.
HPE Alletra Storage Volumehpe_alletra_volumeSpaceData_rawReserved_UserMiBHPE Alletra User RawReserved VolumeSpaceDataUsageMiB2.0.0Raw reserved user space in MiB
hpe_alletra_volumeSpaceData_rawReserved_SnapMiBHPE Alletra Snap RawReserved VolumeSpaceDataUsageMiB2.0.0Raw reserved snap space in MiB
hpe_alletra_volumeSpaceData_rawReserved_AdminMiBHPE Alletra Admin RawReserved VolumeSpaceDataUsageMiB2.0.0Raw reserved admin space in MiB
hpe_alletra_volumeSpaceData_rawReserved_TotalMiBHPE Alletra Total RawReserved VolumeSpaceDataUsageMiB2.0.0Raw reserved total space in MiB
hpe_alletra_volumeSpaceData_userSpace_UsedMiBHPE Alletra Used UserSpace VolumeSpaceDataUsageMiB2.0.0Used user space in MiB
hpe_alletra_volumeSpaceData_userSpace_UsedUtilizationHPE Alletra Used UserSpace Utilization VolumeSpaceDataUsage%2.0.0Used user space utilization
hpe_alletra_volumeSpaceData_snapSpace_UsedMiBHPE Alletra Used SnapSpace VolumeSpaceDataUsageMiB2.0.0Used snapshot space in MiB
hpe_alletra_volumeSpaceData_snapSpace_UsedUtilizationHPE Alletra Used SnapSpace Utilization VolumeSpaceDataUsage%2.0.0Used snapshot space utilization
hpe_alletra_volumeSpaceData_snapSpace_VcopyMiBHPE Alletra Vcopy SnapSpace VolumeSpaceDataUsageMiB2.0.0Snapshot virtual copy space in MiB
hpe_alletra_volumeSpaceData_adminSpace_UsedMiBHPE Alletra Used AdminSpace VolumeSpaceDataUsageMiB2.0.0Used admin space in MiB
hpe_alletra_volumeSpaceData_adminSpace_UsedUtilizationHPE Alletra Used AdminSpace Utilization VolumeSpaceDataUsage%2.0.0Used admin space utilization
hpe_alletra_volumeSpaceData_adminSpace_VcopyMiBHPE Alletra Vcopy AdminSpace VolumeSpaceDataUsageMiB2.0.0Admin virtual copy space in MiB
hpe_alletra_volumeSpaceData_totalSpace_UsedMiBHPE Alletra Used TotalSpace VolumeSpaceDataUsageMiB2.0.0Total used space in MiB
hpe_alletra_volumeSpaceData_totalSpace_UsedUtilizationHPE Alletra Used TotalSpace Utilization VolumeSpaceDataUsage%2.0.0Total used space utilization
hpe_alletra_volumeSpaceData_totalSpace_VcopyMiBHPE Alletra Vcopy TotalSpace VolumeSpaceDataUsageMiB2.0.0Total virtual copy size in MiB
hpe_alletra_volumeSpaceData_totalSpace_HostWriteMiBHPE Alletra HostWrite TotalSpace VolumeSpaceDataUsageMiB2.0.0Space write to the host in MiB
hpe_alletra_volumeSpaceData_CapacityEfficiencyHPE Alletra VolumeSpaceData CapacityEfficiencyPerformance2.0.0Capacity efficiency attributes.
hpe_alletra_volumeSpaceData_CompressionGcKBPSHPE Alletra VolumeSpaceData CompressionGcKBPSPerformanceKBps2.0.0Compression garbage collector in KBPS.
hpe_alletra_volumeSpaceData_CompressionStateHPE Alletra VolumeSpaceData CompressionStatePerformance2.0.0Volume detailed compression state. Possible values are YES:1,NO:2,OFF:3,NA:4
hpe_alletra_volume_StateHPE Alletra Volume StateAvailability2.0.0State of the volume. Possible values are NORMAL:1,DEGRADED:2,FAILED:3,UNKNOWN:4
hpe_alletra_volume_DeduplicationStateHPE Alletra Volume DeduplicationStateAvailability2.0.0Volume detailed deduplication state.Possible values are YES:1,NO:2,NA:3
HPE Alletra VLUNhpe_alletra_vlunstatistics_IOHPE Alletra IO VlunStatisticsPerformancepsec2.0.0Number of IO per second.
hpe_alletra_vlunstatistics_KBytesHPE Alletra KBytes VlunStatisticsPerformanceKBps2.0.0Number of kilobytes per second
hpe_alletra_vlunstatistics_ServiceTimeMSHPE Alletra ServiceTimeMS VlunStatisticsPerformancems2.0.0Service time in millisecond statistic data.
hpe_alletra_vlunstatistics_IOSizeKBHPE Alletra IOSizeKB VlunStatisticsPerformanceKB2.0.0IO size in kilobytes statistic data.
hpe_alletra_vlunstatistics_QueueLengthHPE Alletra QueueLength VlunStatisticsPerformance2.0.0Queue length
hpe_alletra_vlunstatistics_BusyPctHPE Alletra BusyPct VlunStatisticsPerformance%2.0.0Busy percentage
HPE Alletra Physical Diskhpe_alletra_physicalDiskCapacity_AllocatedMiBHPE Alletra Allocated PhysicalDiskCapacityUsageMiB2.0.0Allocated physical disk capacity in the system
hpe_alletra_physicalDiskCapacity_AllocatedUtilizationHPE Alletra Allocated PhysicalDiskCapacity UtilizationUsage%2.0.0Allocated physical disk capacity utilization in the system
hpe_alletra_physicalDiskCapacity_FailedMiBHPE Alletra Failed PhysicalDiskCapacityUsageMiB2.0.0Failed physical disk capacity in the system.
hpe_alletra_physicalDiskStatistics_IOHPE Alletra IO PhysicalDiskStatisticsPerformancepsec2.0.0Number of IO per second.
hpe_alletra_physicalDiskStatistics_KBytesHPE Alletra KBytes PhysicalDiskStatisticsPerformanceKBps2.0.0Number of kilobytes per second.
hpe_alletra_physicalDiskStatistics_ServiceTimeMSHPE Alletra ServiceTimeMS PhysicalDiskStatisticsPerformancems2.0.0Service time in millisecond statistic data/
hpe_alletra_physicalDiskStatistics_IOSizeKBHPE Alletra IOSizeKB PhysicalDiskStatisticsPerformanceKB2.0.0IO size in kilobytes statistic data.
hpe_alletra_physicalDiskStatistics_QueueLengthHPE Alletra QueueLength PhysicalDiskStatisticsPerformance2.0.0Queue length
hpe_alletra_physicalDiskStatistics_BusyPctHPE Alletra BusyPct PhysicalDiskStatisticsPerformance%2.0.0Busy percentage
hpe_alletra_physicalDiskSpacedata_NormalChunkletsHPE Alletra PhysicalDiskSpacedata NormalChunkletsUsagecount2.0.0Normal chunklets data
hpe_alletra_physicalDiskSpacedata_SpareChunkletsHPE Alletra PhysicalDiskSpacedata SpareChunkletsUsagecount2.0.0Spare chunklets data
hpe_alletra_physicalDiskSpacedata_LifeLeftPctHPE Alletra PhysicalDiskSpacedata LifeLeftPctPerformance%2.0.0Percentage of life left.
hpe_alletra_physicalDiskSpacedata_TemperatureCHPE Alletra PhysicalDiskSpacedata TemperatureCThermalCelsius2.0.0Temperature in Celsius.
HPE Alletra Porthpe_alletra_portStatistics_SpeedHPE Alletra Speed PortStatisticsPerformance2.0.0Port speed.
hpe_alletra_portStatistics_IOHPE Alletra IO PortStatisticsPerformancepsec2.0.0Number of IO per second.
hpe_alletra_portStatistics_KBytesHPE Alletra KBytes PortStatisticsPerformanceKBps2.0.0Number of kilobytes per second
hpe_alletra_portStatistics_ServiceTimeMSHPE Alletra ServiceTimeMS PortStatisticsPerformancems2.0.0Service time in millisecond statistic data.
hpe_alletra_portStatistics_IOSizeKBHPE Alletra IOSizeKB PortStatisticsPerformanceKB2.0.0IO size in kilobytes statistic data.
hpe_alletra_portStatistics_QueueLengthHPE Alletra QueueLength PortStatisticsPerformance2.0.0Queue length
hpe_alletra_portStatistics_BusyPctHPE Alletra BusyPct PortStatisticsPerformance%2.0.0Busy percentage
hpe_alletra_port_LinkStateHPE Alletra Port LinkStateAvailability2.0.0LinkState, Possible values are CONFIG_WAIT:1, ALPA_WAIT:2, LOGIN_WAIT:3, READY:4, LOSS_SYNC:5, ERROR_STATE:6, XXX:7,
hpe_alletra_port_FailoverStateHPE Alletra Port FailOverStateAvailability2.0.0The failover state of the two ports indicated in the N:S:P and Partner columns.
Possible values are. none : 0, failover_pending : 1,
failed_over : 2, active : 3, failback_pending : 4,
active_down : 5, -:6
hpe_alletra_port_StateHPE Alletra Port StateAvailability2.0.0State of the port. Possible values are. ready : 0, config_wait : 1,
alpa_wait : 2, login_wait : 3, loss_sync : 4, non_participate : 5
, taking_coredump : 6,
link_idle_for_reset : 7, dhcp_in_progress : 8, pending_reset : 9, error : 10,
xxx : 11, fw_dead : 12, unknown : 13, offline : 14
HPE Alletra Cagehpe_alletra_cage_DetailedStateHPE Alletra Cage Detailed StateAvailability2.0.0Cage state. Possible value. Normal : 0 , error:1
hpe_alletra_cagePowerSupply_FanStateHPE Alletra CagePowerSupply FanStateAvailability2.0.0Cage Powersupply Fan state. Possible values are. OK : 0,-- : 1,Failed : 2
hpe_alletra_cagePowerSupply_StateHPE Alletra CagePowerSupply StateAvailability2.0.0Cage Powersupply state. Possible values are. OK : 0 , -- : 1 , Failed : 2 , NotPresent : 3 , Degraded : 4, Critical : 5
HPE Alletra Nodehpe_alletra_node_StateHPE Alletra Node StateAvailability2.0.0state of the node. Possible values are: Ok : 0 , Degraded : 1, Failed : 2
hpe_alletra_node_DetailedStateHPE Alletra Node DetailedStateAvailability2.0.0Detailed state of node. OK:0, tod_bat_fail:1, invalid_bat_config:2,
multi_uncorrectable_mem_error:5, correctable_mem_error:6,
internal_system_error:7, hardware_watchdog_error:8, pci_error:9, driver_software_error:10,
cpu_overheating:11, cpu_vrm_overheating:12, control_cache_dimm_overheating:13,
node_offline_due_to_failure:14, node_shutdown:15, unknown:16
hpe_alletra_nodePowerSupply_StateHPE Alletra NodePowerSupply StateAvailability2.0.0Node Power supply state. Possible values are. OK : 0,-- : 1,Failed : 2,NotPresent : 3 , Degraded :4
hpe_alletra_nodePowerSupply_ACStateHPE Alletra NodePowerSupply ACStateAvailability2.0.0Node AC Power supply state. Possible values are.OK : 0,-- : 1,Failed : 2
hpe_alletra_nodePowerSupply_DCStateHPE Alletra NodePowerSupply DCStateAvailability2.0.0Node DC Power supply state. Possible values are.OK : 0,-- : 1,Failed : 2
HPE Alletra Batteryhpe_alletra_battery_StateHPE Alletra Battery StateAvailability2.0.0Battery state. Possible values are. OK : 0,Failed : 1,Degraded : 2,NotPresent : 3
hpe_alletra_battery_DetailedStateHPE Alletra Battery DetailedStateAVailability2.0.0Detailed state of the battery. Possible values are. normal : 0, InvalidFirmware : 1,
Unknown : 2,Undefined : 3,
NotPresent : 4, Expired : 5, Failed : 6

Default Monitoring Configurations

HPE Alletra MP/9000 Series has default Global Device Management Policies, Global Templates, Global Monitors and Global metrics in OpsRamp. Users can customize these default monitoring configurations as per their business use cases by cloning respective global templates and global Device Management Policies. OpsRamp recommends doing this activity before installing the app to avoid noise alerts and data.

  1. Default Global Device Management Policies

    OpsRamp has a Global Device Management Policy for each Native Type of HPE Alletra. You can find those Device Management Policies at Setup > Resources > Device Management Policies, search with suggested names in global scope. Each Device Management Policy follows below naming convention:

    {appName nativeType - version}

    Ex: hpe-alletra HPE Alletra Storage System - 1 (i.e, appName = hpe-alletra, nativeType = HPE Alletra Storage System, version = 1)

  2. Default Global Templates

    OpsRamp has a Global template for each Native Type of HPE Alletra. You can find those templates at Setup > Monitoring > Templates, search with suggested names in global scope. Each template follows below naming convention:

    {appName nativeType 'Template' - version}

    Ex: hpe-alletra HPE Alletra Storage System Template - 1 (i.e, appName = hpe-alletra, nativeType = HPE Alletra Storage System, version = 1)

  3. Default Global Monitors

    OpsRamp has a Global Monitors for each Native Type which has monitoring support. You can find those monitors at Setup > Monitoring > Monitors, search with suggested names in global scope. Each Monitors follows below naming convention:

    {monitorKey appName nativeType - version}

    Ex: HPE Alletra Storage System Monitor hpe-alletra HPE Alletra Storage System 1(i.e, monitorKey = HPE Alletra Storage System Monitor, appName = hpe-alletra, nativeType = HPE Alletra Storage System, version = 1)

Configure and Install the HPE Alletra MP/9000 Series Integration

  1. From All Clients, select a client.
  2. Go to Setup > Account.
  3. Select the Integrations and Apps tab.
  4. The Installed Integrations page, where all the installed applications are displayed. If there are no installed applications, it will navigate to the Available Integrations and Apps page.
  5. Click + ADD on the Installed Integrations page. The Available Integrations and Apps page displays all the available applications along with the newly created application with the version.
  6. Search for the application using the search option available. Alternatively, use the All Categories option to search.
  1. Click ADD on the HPE Alletra MP/9000 Series tile.
  2. From the Configurations page, click + ADD. The Add Configuration page appears.
  3. Enter the below mentioned BASIC INFORMATION:
NameEnter the name for the configuration.
IP Address/ Host NameIP address/host name of the HPE Alletra.
WSAPI PortWSAPI Port details.
SSH PortSSH Port
CredentialsSelect the Credential from the drop-down list.

  • Click + Add to create a credential. The ADD CREDENTIAL window is displayed. Enter the following information.
    • Name: Credential name.
    • Description: Brief description of the credential.
    • User Name: User name.
    • Password: Password.
    • Confirm Password: Confirm password


  • By default the Is Secure checkbox is selected.
  • IP Address/Host Name and Port Should be accessible from Gateway.
  • Select the following:
    • App Failure Notifications: if turned on, you will be notified in case of an application failure that is, Connectivity Exception, Authentication Exception.
    • Event/Alert Polling: enables integrating third party alerts into OpsRamp using further configurations.
      • Below are the default values set for:
        • Event/Alert Severity Filter: Possible values of Alert Severity Filter configuration property are “FATAL”,“CRITICAL”,“MAJOR”,“MINOR”.
        • Event Category: “1”,“2”
        • Alert Severity Mapping: Possible values of Alert Severity Mapping Filter configuration property are “FATAL”:“Critical”,“CRITICAL”:“Critical”,“MAJOR”:“Warning”,“MINOR”:“Warning”,
    • API Timeouts: These are the maximum API Timeouts that the application can use to connect and get responses from the end device.
      • Connection Timeout in Secs: a time period in which a client should establish a connection with a server.
        Note: By default, 60 is selected.
      • Connection Request Timeout in Secs: a time period required to process an HTTP call: from sending a request to receiving a response.
        Note: By default, 10 is selected.
      • Socket Timeout in Secs: a maximum time of inactivity between two data packets when exchanging data with a server.
        Note: By default, 10 is selected.
  1. Select the below mentioned Custom Attribute:
Custom AttributeSelect the custom attribute from the drop down list box.
ValueSelect the value from the drop down list box.

Note: The custom attribute that you add here will be assigned to all the resources that are created by the integration. You can add a maximum of five custom attributes (key and value pair).

  1. In the RESOURCE TYPE section, select:

    • ALL: All the existing and future resources will be discovered.
    • SELECT: You can select one or multiple resources to be discovered.
  2. In the DISCOVERY SCHEDULE section, select Recurrence Pattern to add one of the following patterns:

    • Minutes
    • Hourly
    • Daily
    • Weekly
    • Monthly
  3. Click ADD.

Now the configuration is saved and displayed on the configurations page after you save it.
Note: From the same page, you may Edit and Remove the created configuration.

  1. Under the ADVANCED SETTINGS, Select the Bypass Resource Reconciliation option, if you wish to bypass resource reconciliation when encountering the same resources discovered by multiple applications.

    Note: If two different applications provide identical discovery attributes, two separate resources will be generated with those respective attributes from the individual discoveries.

  2. Click NEXT.

  3. (Optional) Click +ADD to create a new collector by providing a name or use the pre-populated name.

  1. Select an existing registered profile.
  1. Click FINISH.

The application is installed and displayed on the INSTALLED INTEGRATION page. Use the search field to find the installed integration.

Modify the Configuration

View the HPE Alletra MP/9000 Details

To discover resources for HPE Alletra MP/9000

  1. Navigate to Infrastructure > Search > STORAGE > HPE Alletra MP/9000.
  2. The HPE Alletra MP/9000 page is displayed, select the application name.
  3. The RESOURCE DETAILS page appears from the right.
  4. Click the ellipsis () on the top right and select View Details.

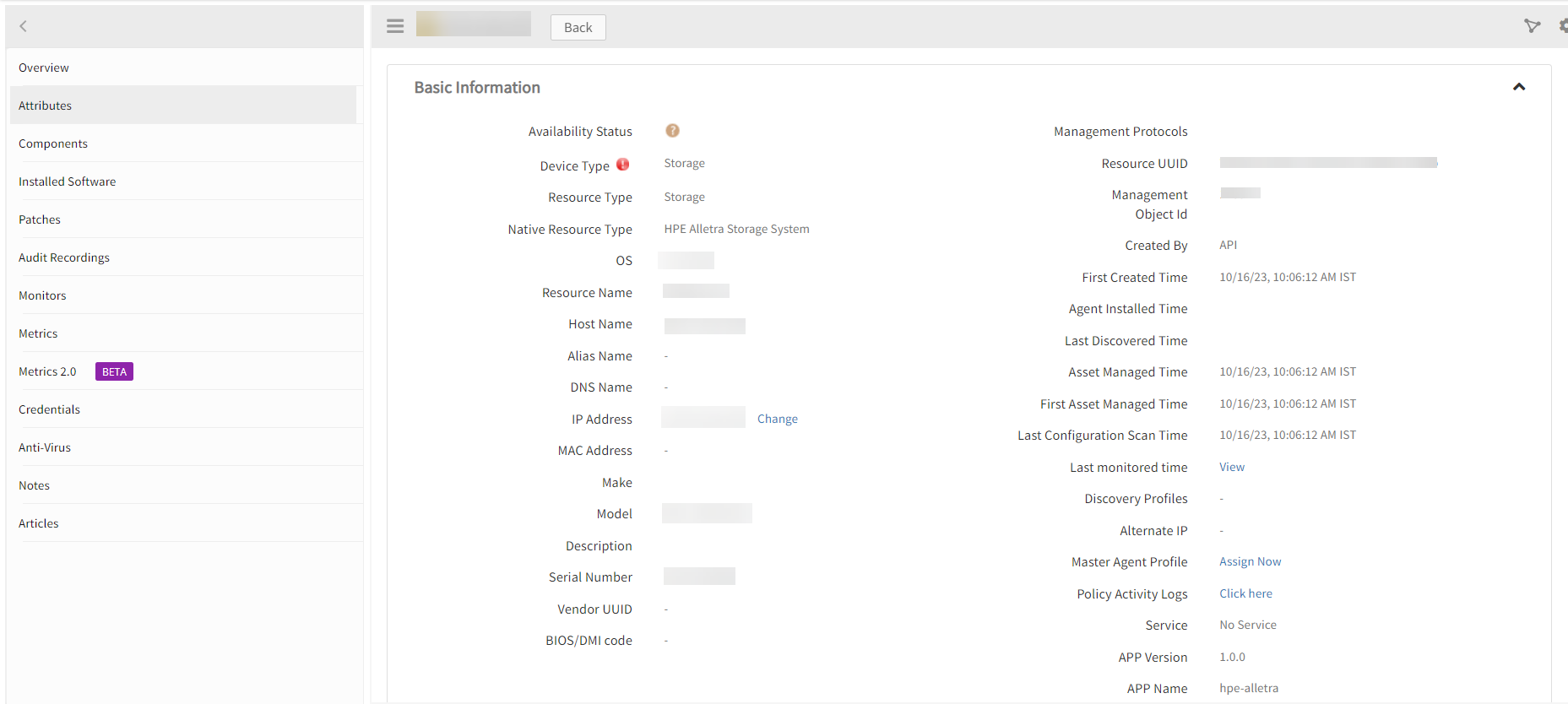

  5. Navigate to the Attributes tab to view the discovery details.
  • Click the Metrics tab to view the metric details for HPE Alletra MP/9000.

Risks, Limitations & Assumptions

  • Application can handle Critical/Recovery failure notifications for below two cases when user enables App Failure Notifications in configuration
    • Connectivity Exception
    • Authentication Exception
  • Application uses the provided IpAddress/hostname, Credentials for both WS APIs and SSH communications.
  • Application will send any duplicate/repeat failure alert notification for every 6 hours.
  • Application cannot control monitoring pause/resume actions based on above alerts.
  • Metrics can be used to monitor HPE Alletra resources and can generate alerts based on the threshold values.
  • As per Developer guide, support to show disk information was added in WSAPI 1.6.15 release. So, OpsRamp will use Physical disk statistical data reports API when the WSAPI version is less than 1.6.15 and OpsRamp will use Querying physical disk information API when the WSAPI version is greater than or equals to 1.6.15.
  • As few of the HPE Alletra components did not have direct name information in WSAPI responses, OpsRamp proceed with below assumptions:
    • For Physical Disk Discovery, OpsRamp considered Physical disk ID (if WSAPI version is less than 1.6.15) OR WWN (if WSAPI version is greater than or equal to 1.6.15) as Resource Name in OpsRamp.
    • For Ports Discovery, OpsRamp considered portWWN (Port WWN will present for FCoE and FC ports only) OR port portPos (when portWWN was not present in response) as Resource Name in OpsRamp.
    • For VLUN Discovery, OpsRamp considered lun value as Resource Name in OpsRamp.
  • HPE Alletra’s Event/Alert polling will be started only if the user enables Event/Alert Polling in configuration.
  • Possible values of Event/Alert Severity Filter configuration property are FATAL, CRITICAL, MAJOR, MINOR, DEGRADED, INFORMATIONAL, DEBUG, UNKNOWN.
  • Possible values of Event Category configuration property are 1, 2. Category 1 is used to identify a lifecycle event and two is used to identify an alert.
  • OpsRamp has given sample mappings to map HPE Alletra Severity with OpsRamp Severities as part of the Event/Alert Severity Mapping configuration file. Users can modify them as per their use-case at any point of time from the app configuration page. Possible OpsRamp Severities are Critical, Warning, Ok, Info.
  • In referred hpe-alletra developer guides, There is no information about how Logged system events are getting resolved, hence OpsRamp has not included polled events/alerts recovery mechanism.
  • No support for Macro replacement for threshold breach alerts (i.e, customisation for threshold breach alert’s subject, description).
  • Component level thresholds can be configured on each resource level.
  • No support of showing activity log and applied time.
  • Application is not compatible with Cluster Gateway.
  • While upgrading the app to 2.0.0 or above versions, please uncheck HPE Alletra FC Switches, HPE Alletra Port Devices in configuration page and then upgrade the app as these are removed from version 2.0.0
