Supported Versions |
---|
SunOS-5.9 OS |
SunOS 5.11 Oracle Solaris 11.3 x86 |
Application Version and Upgrade Details
Application Version | Bug fixes / Enhancements |
---|---|
6 |
Introduction
Solaris is a proprietary operating system which is provided by Oracle Corporation. It is a Unix-like operating system. It uses a mixed-source model, which includes both open and closed source components. This operating system uses a monolithic kernel with dynamically loadable modules.
Prerequisites
- OpsRamp Classic Gateway 14.0.0 and above.
- OpsRamp Nextgen Gateway 14.0.0 and above.
Note: OpsRamp recommends using the latest Gateway version for full coverage of recent bug fixes, enhancements, etc. - Provided IP Address/Host Name, Credentials should work for SSH communication.
- Users should have read permissions for files /dev/mem, /dev/kmem. In order to fetch below metrics:
- solaris_os_server_openFileDescriptors_Utilization
- solaris_os_server_openFileDescriptors_UsedCount
- solaris_os_server_loggedInUsers_Pct
- solaris_os_server_runningProcesses_Pct
- solaris_os_server_Semaphores_Utilization
- solaris_os_server_messageQueueIDs_Utilization
- solaris_os_server_sharedMemoryIDs_Utilization
- Provided the user should have a tmp folder, which the application uses to store cache data while running script.
- For users to apply log file monitoring, they must have a home directory on the system on which the script will be run.
pwd
[content@centos-node1 ~]$ pwd
/home/content
- Non-root users should have a home directory and make sure the user has read, write & execute permissions to that directory for log file monitoring.
(As part of log file monitoring, the application will copy the .sh script file into the Solaris device which is responsible for log file monitoring. This will copy the file into user’s home directory)
Supported Metrics
Click here to view the supported metrics
Native Type | Metric Name | Display Name | Units | Application Version | Description |
---|---|---|---|---|---|
Solaris Server | solaris_os_server_logFile_AlertStatistics | Solaris OS Server Log file alert Statistics | 1.0.0 | Solaris OS Server log file monitoring alert statistics | |
solaris_os_server_openFileDescriptors_Utilization | Solaris OS Server open file descriptor utilization | % | 1.0.0 | Solaris Open File Descriptors Used Percentage | |
solaris_os_server_openFileDescriptors_UsedCount | Solaris OS Server open file descriptor used count | Count | 1.0.0 | Current number of Open File Descriptors | |
solaris_os_server_loggedInUsers_Pct | Solaris OS Server logged in users percentage | % | 1.0.0 | Current number of logged in users percentage | |
solaris_os_server_loggedInUsers_Count | Solaris OS Server logged in users count | Count | 1.0.0 | Current number of logged in users | |
solaris_os_server_runningProcesses_Pct | Solaris OS Server running processes percentage | % | 1.0.0 | Current running processes percentage | |
solaris_os_server_runningProcesses_Count | Solaris OS Server running processes count | Count | 1.0.0 | Current number of running processes | |
solaris_os_server_semaphores_Utilization | Solaris OS Server semaphores utilization | % | 1.0.0 | Semaphore ID's used percentage | |
solaris_os_server_semaphores_UsedCount | Solaris OS Server semaphores used count | Count | 1.0.0 | Current number of semaphore ID’s in use | |
solaris_os_server_messageQueueIDs_Utilization | Solaris OS Server message queue IDs utilization | % | 1.0.0 | Used percentage of current message queue ID's | |
solaris_os_server_messageQueueIDs_UsedCount | Solaris OS Server message queue IDs used count | Count | 1.0.0 | Current number of message queue ID’s in use | |
solaris_os_server_sharedMemoryIDs_Utilization | Solaris OS Server shared memory IDs utilization | % | 1.0.0 | Used percentage of shared memory ID's | |
solaris_os_server_sharedMemoryIDs_UsedCount | Solaris OS Server shared memory IDs used count | Count | 1.0.0 | Current number of shared memory ID’s in use | |
solaris_os_server_cpu_total_Utilization | Solaris OS Server CPU utilization | % | 1.0.0 | System CPU Utilization | |
solaris_os_server_cpu_logicalProcessor_Utilization | Solaris OS Server CPU logical processor utilization | % | 1.0.0 | System CPU logical processor Utilization | |
solaris_os_server_cpu_Load | Solaris OS Server CPU load | 1.0.0 | Average cpu load for 1 min, 5 min and 15 min | ||
solaris_os_server_realMemory_ScanRate | Solaris OS Server real memory scan rate | psec | 1.0.0 | Memory scan rate in pages per second. | |
solaris_os_server_realMemory_pageOuts_PagesPerSec | Solaris OS Server real memory page outs pages per sec | psec | 1.0.0 | Memory page out rate in pages per second. | |
solaris_os_server_realMemory_pageOuts_KiloBytesPerSec | Solaris OS Server real memory page outs kilobytes per sec | KBps | 1.0.0 | Memory pages page out rate in KiloBytes per second. | |
solaris_os_server_memory_UsedInMB | Solaris OS Server memory used | MB | 1.0.0 | System Memory Used Space | |
solaris_os_server_memory_Utilization | Solaris OS Server memory utilization | % | 1.0.0 | System Memory Utilization | |
solaris_os_server_swapMemory_UsedInKB | Solaris OS Server swap memory used | KB | 1.0.0 | Swap memory used | |
solaris_os_server_swapMemory_Utilization | Solaris OS Server swap memory utilization | % | 1.0.0 | Swap memory utilization in percent. | |
solaris_os_server_individual_swapArea_Utilization | Solaris OS Server individual swap area utilization | % | 1.0.0 | Individual swap area utilization in percent. | |
solaris_os_server_fileSystem_space_Utilization | Solaris OS Server file system space utilization | % | 1.0.0 | File system space utilization in percent | |
solaris_os_server_fileSystem_space_UsedInMB | Solaris OS Server file system space used in MB | MB | 1.0.0 | File system space usage in MB | |
solaris_os_server_fileSystem_space_DeltaInKB | Solaris OS Server file system space delta in KB | KB | 1.0.0 | File system space usage(KB) delta | |
solaris_os_server_fileSystem_Inodes_Utilization | Solaris OS Server file system Inodes utilization | % | 1.0.0 | File system Inodes utilization percent. | |
solaris_os_server_fileSystem_Inodes_Usage_Number | Solaris OS Server file system Inodes usage number | Count | 1.0.0 | File system Inodes usage number. | |
solaris_os_server_fileSystem_Inodes_Delta | Solaris OS Server file system Inodes delta | Count | 1.0.0 | File system Inodes usage delta. | |
solaris_os_server_fileSystem_mount_ChangeDetection | Solaris OS Server file system mount change detection | 1.0.0 | File system mount point change detection. It detects if any file system mount point is removed and if any new mount point added into the system. Below are the possible values: 0 - Available, 1 - Newly Added, 2 - Removed | ||
solaris_os_server_mountpoint_space_Utilization | Solaris OS Server mount point space utilization | % | 1.0.0 | Mount point space utilization in percent | |
solaris_os_server_mountpoint_space_UsedInMB | Solaris OS Server mount point space used in MB | MB | 1.0.0 | Mount point usage in MB | |
solaris_os_server_mountpoint_space_DeltaInKB | Solaris OS Server mount point space delta in KB | KB | 1.0.0 | Mount point space usage(KB) delta | |
solaris_os_server_mountpoint_Inodes_Utilization | Solaris OS Server mount point Inodes utilization | % | 1.0.0 | Mount point Inodes utilization percent. | |
solaris_os_server_mountpoint_Inodes_Usage_Number | Solaris OS Server mount point Inodes usage number | Count | 1.0.0 | Mount point Inodes usage number. | |
solaris_os_server_mountpoint_Inodes_Delta | Solaris OS Server mount point Inodes delta | Count | 1.0.0 | Mount point Inodes usage delta. | |
solaris_os_server_mountpoint_availability_Status | Solaris OS Server mount point availability status | 1.0.0 | Availability status of mount point. These are possible values : 0 - Not Available 1 - Available | ||
solaris_os_server_network_interface_OutTraffic | Solaris OS Server Network Out Traffic | Kbps | 1.0.0 | Monitors Out traffic of each interface for solaris Devices. | |
solaris_os_server_network_interface_OutPackets | Solaris OS Server Network out packets | packets/sec | 1.0.0 | Monitors Out packets of each interface for solaris Devices | |
solaris_os_server_network_interface_OutErrors | Solaris OS Server Network Out Errors | Count | 1.0.0 | Monitors network out errors of each interface for solaris Devices | |
solaris_os_server_network_interface_InPackets | Solaris OS Server Network In packets | packets/sec | 1.0.0 | Monitors in Packets of each interface for solaris Devices | |
solaris_os_server_network_interface_InErrors | Solaris OS Server Network In Errors | Count | 1.0.0 | Monitors network in errors of each interface for solaris Devices | |
solaris_os_server_network_interface_Collisions | Solaris OS Server Network Interface collisions | Count | 1.0.0 | Monitors network collisions of each interface for solaris Devices | |
solaris_os_server_network_interface_InTraffic | Solaris OS Server Network In Traffic | Kbps | 1.0.0 | Monitors In traffic of each interface for solaris Devices | |
solaris_os_server_process_RunningStatus | Solaris OS Server process running status | 1.0.0 | Monitors status of each user mentioned process. possible values 0-Not Running, 1- Running | ||
solaris_os_server_zfs_zpool_UsedInGB | Solaris OS Server ZFS zpool Used | GB | 1.0.0 | Provides Solaris OS Server ZFS zpool Used in MB | |
solaris_os_server_zfs_zpool_Utilization | Solaris OS Server ZFS zpool utilization | % | 1.0.0 | Provides Solaris OS Server ZFS zpool utilization in percent | |
solaris_os_server_zfs_zpool_Health | Solaris OS Server ZFS zpool Health | 1.0.0 | Solaris OS Server ZFS zpool Health status. possible values 0-DEGRADED, 1-ONLINE, 2-SUSPENDED, 3-UNAVAIL, 4-,UNKNOWN 5-CLEARED | ||
solaris_os_server_zone_Status | Solaris OS Server zone status | 1.0.0 | Solaris OS Server zone status. possible values 0-RUNNING, 1-CONFIGURED, 2-INSTALLED, 3-READY, 4-HALTED, 5-INCOMPLETE |
Default Monitoring Configurations
Solaris OS Server has default Global Device Management Policies, Global Templates, Global Monitors and Global metrics in OpsRamp. Users can customize these default monitoring configurations as per their business use cases by cloning respective global templates and global Device Management Policies. OpsRamp recommends doing this activity before installing the app to avoid noise alerts and data.
Default Global Device Management Policies
OpsRamp has a Global Device Management Policy for each Native Type of Solaris OS Server. You can find those Device Management Policies at Setup > Resources > Device Management Policies, search with suggested names in global scope. Each Device Management Policy follows below naming convention:
{appName nativeType - version}
Ex: solaris-os-server Solaris Server - 1 (i.e, appName = solaris-os-server, nativeType = Solaris Server, version = 1)
Default Global Templates
OpsRamp has a Global template for each Native Type of Solaris OS Server. You can find those templates at Setup > Monitoring > Templates, search with suggested names in global scope. Each template follows below naming convention:
{appName nativeType 'Template' - version}
Ex: solaris-os-server Solaris Server Template - 1 (i.e, appName = solaris-os-server, nativeType = Solaris Server, version = 1)
Default Global Monitors
OpsRamp has a Global Monitors for each Native Type which has monitoring support. You can find those monitors at Setup > Monitoring > Monitors, search with suggested names in global scope. Each Monitors follows below naming convention:
{monitorKey appName nativeType - version}
Ex: Solaris Server Monitor solaris-os-server Solaris Server - 1(i.e, monitorKey = Solaris Server Monitor, appName = solaris-os-server, nativeType = Solaris Server, version = 1)
Configure and Install the Solaris OS Server Integration
- From All Clients, select a client.
- Go to Setup > Account.
- Select the Integrations and Apps tab.
- The Installed Integrations page, where all the installed applications are displayed.
Note: If there are no installed applications, it will navigate to the Available Integrations and Apps page. - Click + ADD on the Installed Integrations page. The Available Integrations and Apps page displays all the available applications along with the newly created application with the version.
Note: You can even search for the application using the search option available. Also you can use the All Categories option to search.
- Click ADD in the Solaris OS Server application.

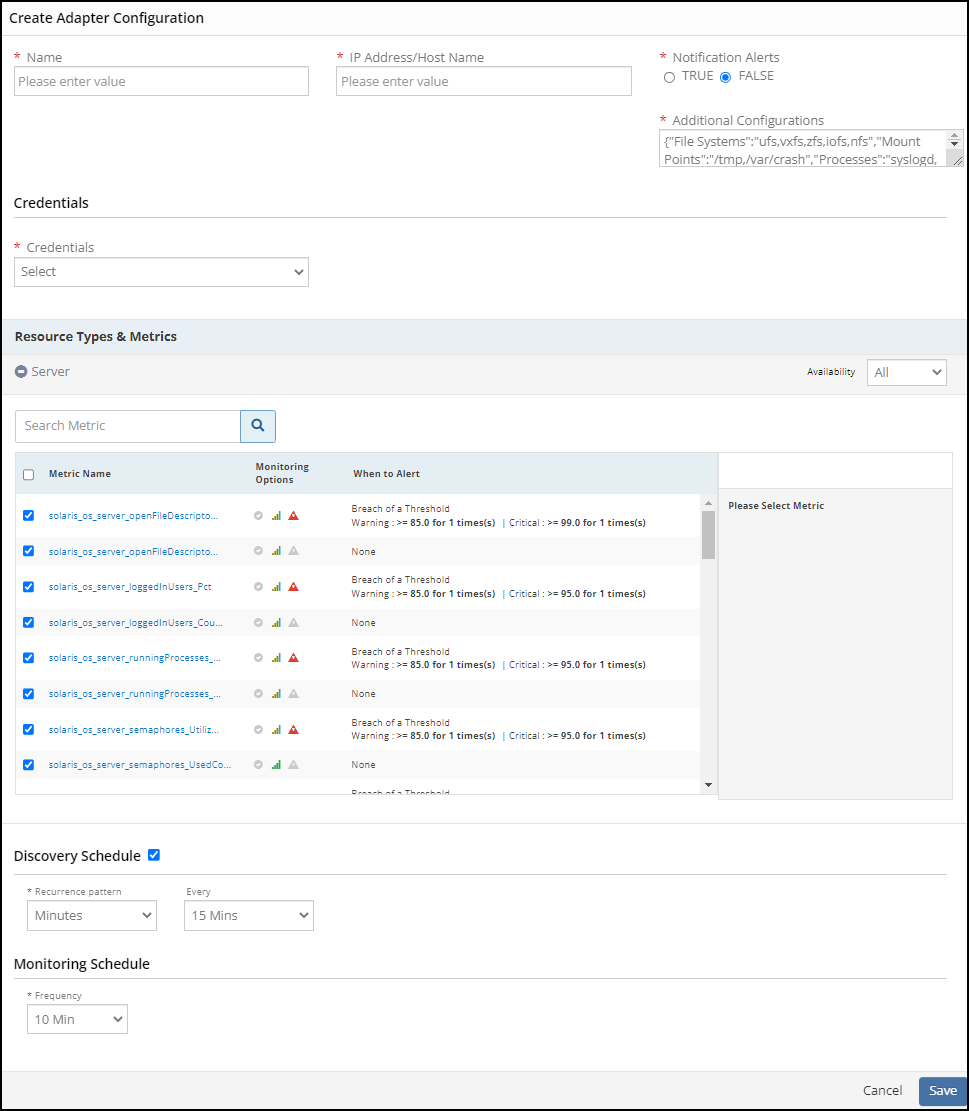

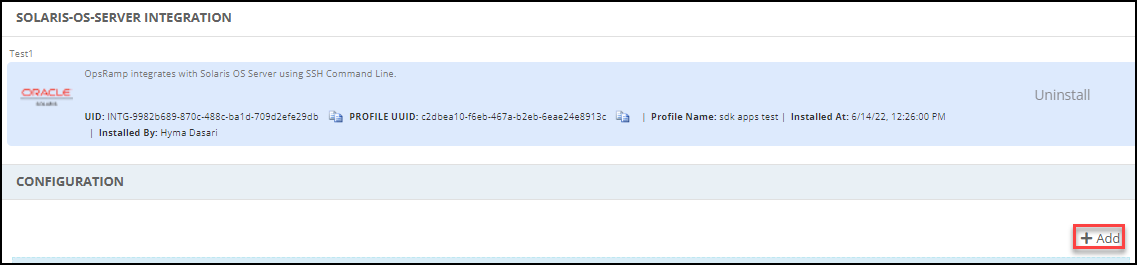

- In the Configurations page, click + ADD. The Add Configuration page appears.
- Enter the below mentioned BASIC INFORMATION:
Functionality | Description |
---|---|
Name | Enter the name for the configuration. |
IP Address/Host Name | IP address/host name of the Solaris OS Server. |
Port | Port Note: By default 22 is selected. |
Credentials | Select the Credential from the drop-down list. (Optional) Click + Add to create a credential. The ADD CREDENTIAL window is displayed. Enter the following information:
|
Additional Configurations | Enter the additional configuration. Note: By default {"File Systems":"ufs,vxfs,zfs,iofs,nfs","Mount Points":"/tmp,/var/crash","Processes":"syslogd,cron,init,sshd,sendmail,event_logger,had,vxconfigd,fsflush"} is added. |
Notes:
- Ip Address/Host Name and Port should be accessible from Gateway.
- Select the following:
- App Failure Notifications: if turned on, you will be notified in case of an application failure that is, Connectivity Exception, Authentication Exception.
- Log File Monitoring: configure the values for below fields as per your log file monitoring use case:
- Log File Configuration: [{“Name”:"",“File Name”:"",“Rotated File Name”:"",“Expression”:"",“Check Type”:"",“Threshold”:"",“Severity”:""}].
- Select the below mentioned Custom Attribute:
Functionality | Description |
---|---|
Custom Attribute | Select the custom attribute from the drop down list box. |
Value | Select the value from the drop down list box. |
Note: The custom attribute that you add here will be assigned to all the resources that are created by the integration. You can add a maximum of five custom attributes (key and value pair).
- In the RESOURCE TYPE section, select:
- ALL: All the existing and future resources will be discovered.
- SELECT: You can select one or multiple resources to be discovered.
- In the DISCOVERY SCHEDULE section, select Recurrence Pattern to add one of the following patterns:
- Minutes
- Hourly
- Daily
- Weekly
- Monthly
- Click ADD.
Now the configuration is saved and displayed on the configurations page after you save it.

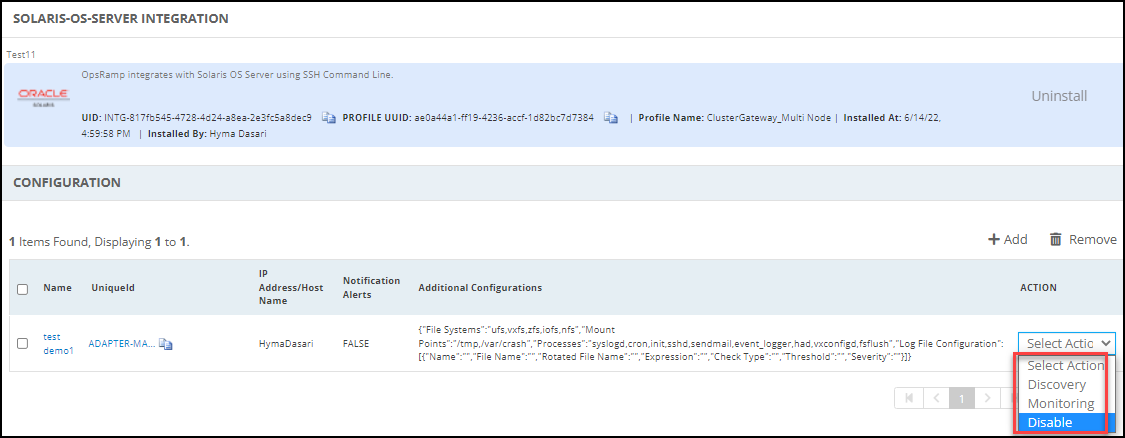

Note: From the same page, you may Edit and Remove the created configuration.
Under the ADVANCED SETTINGS, Select the Bypass Resource Reconciliation option, if you wish to bypass resource reconciliation when encountering the same resources discovered by multiple applications.
Note: If two different applications provide identical discovery attributes, two separate resources will be generated with those respective attributes from the individual discoveries.
Click NEXT.
(Optional) Click +ADD to create a new collector by providing a name or use the pre-populated name.
- Select an existing registered profile.
- Click FINISH.
The application is installed and displayed on the INSTALLED INTEGRATION page. Use the search field to find the installed integration.
Modify the Configuration
See Modify an Installed Integration or Application article.
Note: Select the Solaris OS Server application.
View the Solaris OS Server Details
To discover resources for Solaris OS Server:
- Navigate to Infrastructure > Search > OS > Solaris OS Server.
- The SOLARIS OS SERVER page is displayed, select the application name.
- The RESOURCE DETAILS page appears from the right.
- Click the ellipsis (…) on the top right and select View details.

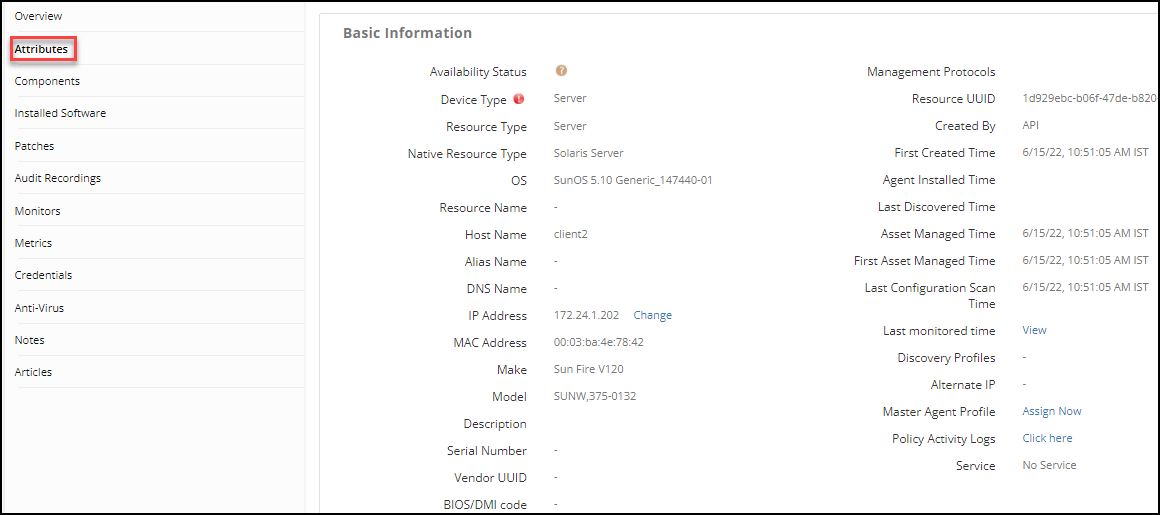

- Navigate to the Attributes tab to view the discovery details.

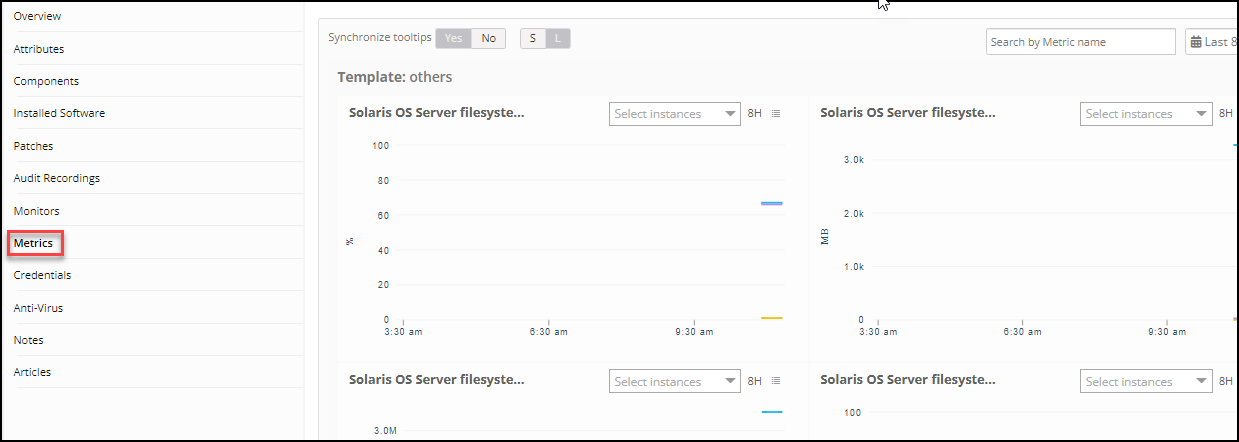

- Click the Metrics tab to view the metric details for Solaris Server.
View resource metrics
To confirm Solaris OS Server monitoring, review the following:
- Metric graphs: A graph is plotted for each metric that is enabled in the configuration.
- Alerts: Alerts are generated for metrics that are configured as defined for integration.
Resource Filter Input Keys
Solaris OS Server application Resources are filtered and discovered based on below keys:
Note: You can filter the resources with the discoverable keys only.
Click here to view the Supported Input Keys
Resource Type | Supported Input Keys |
---|---|
All Types | resourceName |
hostName | |
aliasName | |
dnsName | |
ipAddress | |
macAddress | |
os | |
make | |
model | |
serialNumber | |
Kernel architecture | |
Application architecture | |
Hardware provider | |
Host ID | |
Computer architecture | |
Installed Memory | |
Processor Type | |
Physical Processor(cpu) count |
Supported Alert Custom Macros
Customise the alert subject and description with below macros then it will generate alerts based on customisation.
Click here to view the alert subject and description with macros
${resource.name}
${resource.ip}
${resource.mac}
${resource.aliasname}
${resource.os}
${resource.type}
${resource.dnsname}
${resource.alternateip}
${resource.make}
${resource.model}
${resource.serialnumber}
${resource.systemId}
${Custome Attributes in the resource}
${parent.resource.name}
Risks, limitations & assumptions
- Application can handle Critical/Recovery failure notifications for below two cases when user enables App Failure Notifications in configuration
- Connectivity Exception
- Authentication Exception
- Application uses the provided IPAddress/hostname, credentials for SSH communications.
- Application will send duplicate/repeat failure alert notification for every 6 hours.
- Application cannot control monitoring pause/resume actions based on above alerts.
- Metrics can be used to monitor Solaris Server resources and can generate alerts based on the threshold values.
- OpsRamp has provided 22 as default SSH Port value for connecting to Solaris end device via SSH. Users can modify this value from the application configuration page at any point of time if required.
- No support of showing activity log and applied time.
- Full discovery support requires gateway version 15.0.0 or above.
- This application supports both Classic Gateway and NextGen Gateway.
- Currently we do not have monitoring support for below:
- Hardware metrics
- Processes (We provided one metric for each process RunningStatus. i.e, solaris_os_server_process_RunningStatus)
- Use the below commands to fetch max limits, see To configure shared memory and semaphores on Solaris for more information.
Max Limit Commands
Semaphore ID Limit: echo seminfo_semmni/D | mdb -k
Shared memory ID Limit: echo shminfo_shmmni/D | mdb -k
Message Queue ID Limit: echo msginfo_msgmni/D | mdb -k
- Need below json payload as input for log monitoring:
- Name: This can be any string used to identify individual log configuration.
- File Name: It is a combination of folder path and file name. Folder path should contain the exact path for the file as prefix. File name can be any valid string or regular expression. In case of file not found with specified file name, alert will be generated with the severity specified by the user.
Example 1: C:\Program Files (x86)\Vistara\Agent\log\Age.?t.log
Matches: Agent.log, Ageat.log ,.. - Rotated File Name: It is similar to file name field but specifying the rotated file. This is a optional field.
- Expression: This can be any valid string or regular expression used to specify the search string. It is a mandatory field.
- Check Type: This can be either “exists” or “not exists”(case insensitive).
- Threshold: This can be any valid integer. Alert will be generated in case of specified threshold breach happens.
- Severity: It is used to specify the alert type to be created in case of expression found. Possible values are CRITICAL, WARNING, INFO, and OK (case insensitive).
Log file configuration:
[
{
"Name":"",
"File Name":"",
"Rotated File Name":"",
"Expression":"",
"Check Type":"",
"Threshold":"",
"Severity":""
}
]
- We do not process logs of size greater than 1GB.
- We do not process logs for the first request, since it leads to performance issues due to huge data.
- We consider the latest logs ( logs generated between first and second polls) from the second request and process accordingly.
- No recovery alerts are generated for expression related alerts. we will get recovery only for file not found alerts.
