This section guides you through setting up, configuring, and managing the Cohesity NetBackup integration in OpsRamp.
Prerequisites
Before configuring the integration, ensure that your environment meets the following requirements related to gateway versions, credentials, and connectivity.
- OpsRamp Classic Gateway (Linux) version 14.2.0 or later.
- OpsRamp NextGen Gateway version 14.2.0 or later.
- Cohesity NetBackup Primary Server IP or FQDN must be reachable from the gateway.
- Cohesity NetBackup API port 1556 (default) must be open and reachable.
- HTTPS communication must be allowed between gateway and Netbackup endpoint.
- Configure API credentials with read-only access.
Configure Cohesity NetBackup Integration
To configure the integration:
- From All Clients, select a client.
- Navigate to Setup > Account.
- Select the Integrations tab.
- The Installed Integrations page, where all the installed integrations are displayed. Click + ADD on the Installed Integrations page.
- If you do not have any installed applications, you will be navigated to the Available Integrations page. The Available Integrations page displays all the available applications along with the newly created application with the version.
Note: Search for the application using the search option available. Alternatively, use the All Categories option to search. - Click ADD on the Cohesity NetBackup tile.

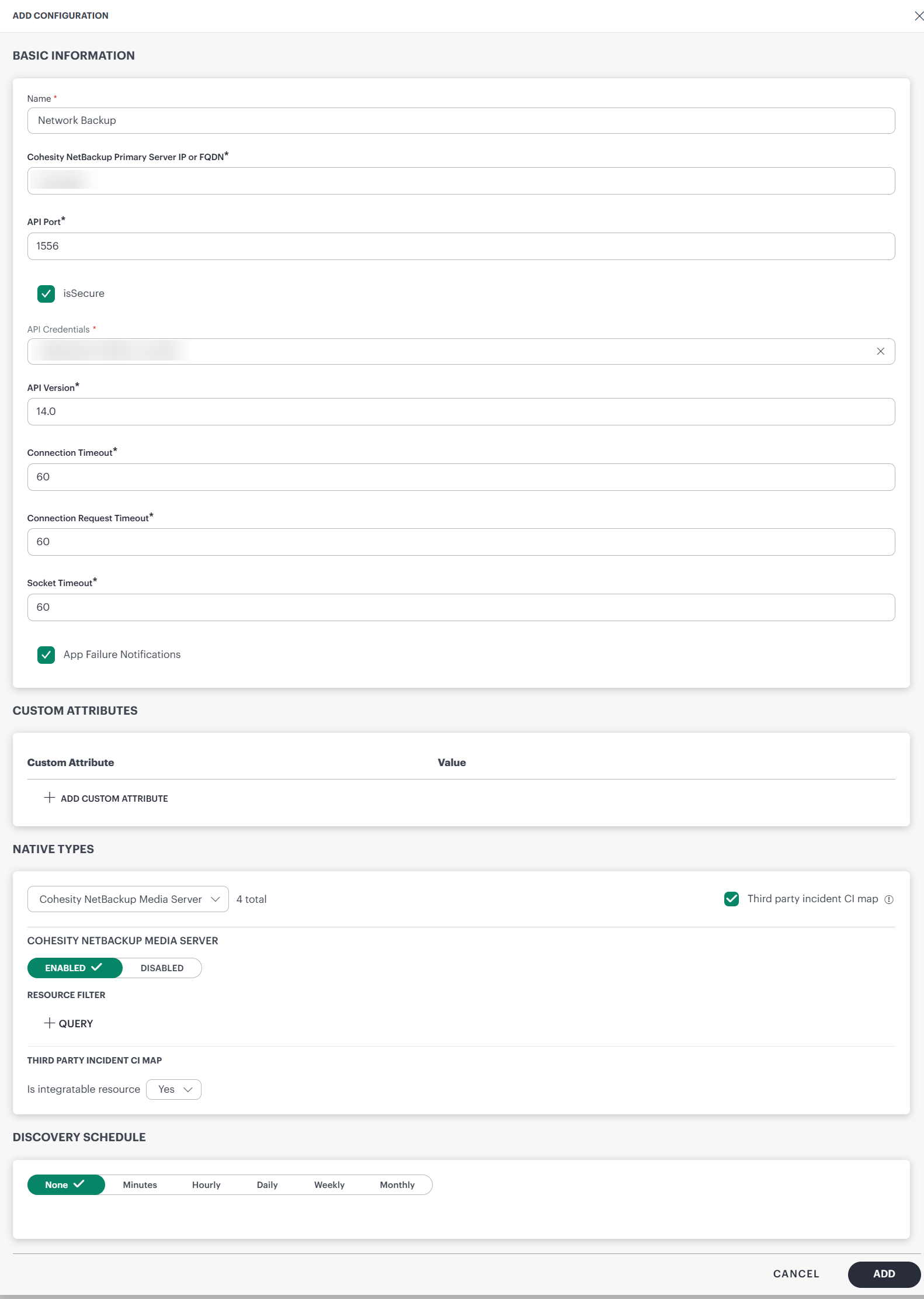

- From the Configurations page, click + ADD. The Add Configuration page appears.
- Enter the following BASIC INFORMATION:
| Field Name | Description | Field Type | Default Value |
|---|---|---|---|
| Name | A user-defined display name for the integration instance. | String | |
Cohesity NetBackup Primary Server IP or FQDN | Enter the management IP address or hostname of the Cohesity NetBackup. You must be able to connect to this using HTTPS. This is the primary endpoint for all REST API. | String | |
| Is Secure | Select this checkbox if you want the communication between your system and the specified endpoint to be secured using HTTPS (HTTP over SSL/TLS). Default Selection: When selected, it signifies that the connection is encrypted, providing an added layer of security to the data being transmitted. | Checkbox | true |
| API Port | Provide the API Port details. The port must be open and accessible for API communication from the gateway. This port is used for both discovery REST APIs (Kubernetes-style) and Prometheus monitoring queries. Note: By default API Port is 443. | String | 1556 |
| credentials | Select the Credential from the drop-down list. (Optional): Click + Add to create a credential. The ADD CREDENTIAL window is displayed. Enter the following information.
| Dropdown | |
apiVersion | Need to provide the API verison, which we are using to fetch the data. | String | 14.0 |
| Connection Timeout in Secs | Specify the maximum time (in seconds) the integration waits while establishing a connection with the API endpoint. Default Value: 60 | String | 60 |
| Connection Request Timeout in Secs | Specify the maximum time (in seconds) required to process an HTTP call — from sending a request to receiving a response. Default Value: 10 | String | 60 |
| Socket Timeout in Secs | Specify the maximum time of inactivity (in seconds) between two data packets when exchanging data with the server. Default Value: 10 | String | 60 |
| App Failure Notifications | Enable or disable application failure notification alerts. When enabled, OpsRamp generates alerts if the integration encounters connectivity or authentication failures during discovery or monitoring operations. | Checkbox | false |
Notes:
- By default the Is Secure checkbox is selected.
- IP Address and Port should be accessible from Gateway.
- Select the following:
- App Failure Notifications: if turned on, you will be notified in case of an application failure that is, Connectivity Exception, Authentication Exception.
- Select the following Custom Attribute:
| Functionality | Description |
|---|---|
| Custom Attribute | Select the custom attribute from the drop down list. |
| Value | Select the value from the drop down list. |
Note: The custom attribute that you add here will be assigned to all the resources that are created by the integration. You can add a maximum of five custom attributes (key and value pair).
- In the Native Types section, select the native types to be discovered.
- In the DISCOVERY SCHEDULE section, select Recurrence Pattern to add one of the following patterns:
- Minutes
- Hourly
- Daily
- Weekly
- Monthly
- Click ADD.
The configuration is saved and displayed on the configurations page after you save it.
Note: From the same page, you may Edit and Remove the created configuration.
- Under the ADVANCED SETTINGS, Select the Bypass Resource Reconciliation option, if you wish to bypass resource reconciliation when encountering the same resources discovered by multiple applications. Note: If two different applications provide identical discovery attributes, two separate resources will be generated with those respective attributes from the individual discoveries.
- Click NEXT.
- (Optional) Click +ADD to create a new collector. You can either use the pre-populated name or give the name to your collector.
- Select an existing registered profile.
- Click FINISH.
The integration is installed and displayed on the INSTALLED INTEGRATION page. Use the search field to find the installed integration.
Modify the Configuration
- See Modify an Installed Integration or Application article.
Note: Select Cohesity NetBackup.
View the Cohesity NetBackup Details
To discover resources for Cohesity NetBackup:

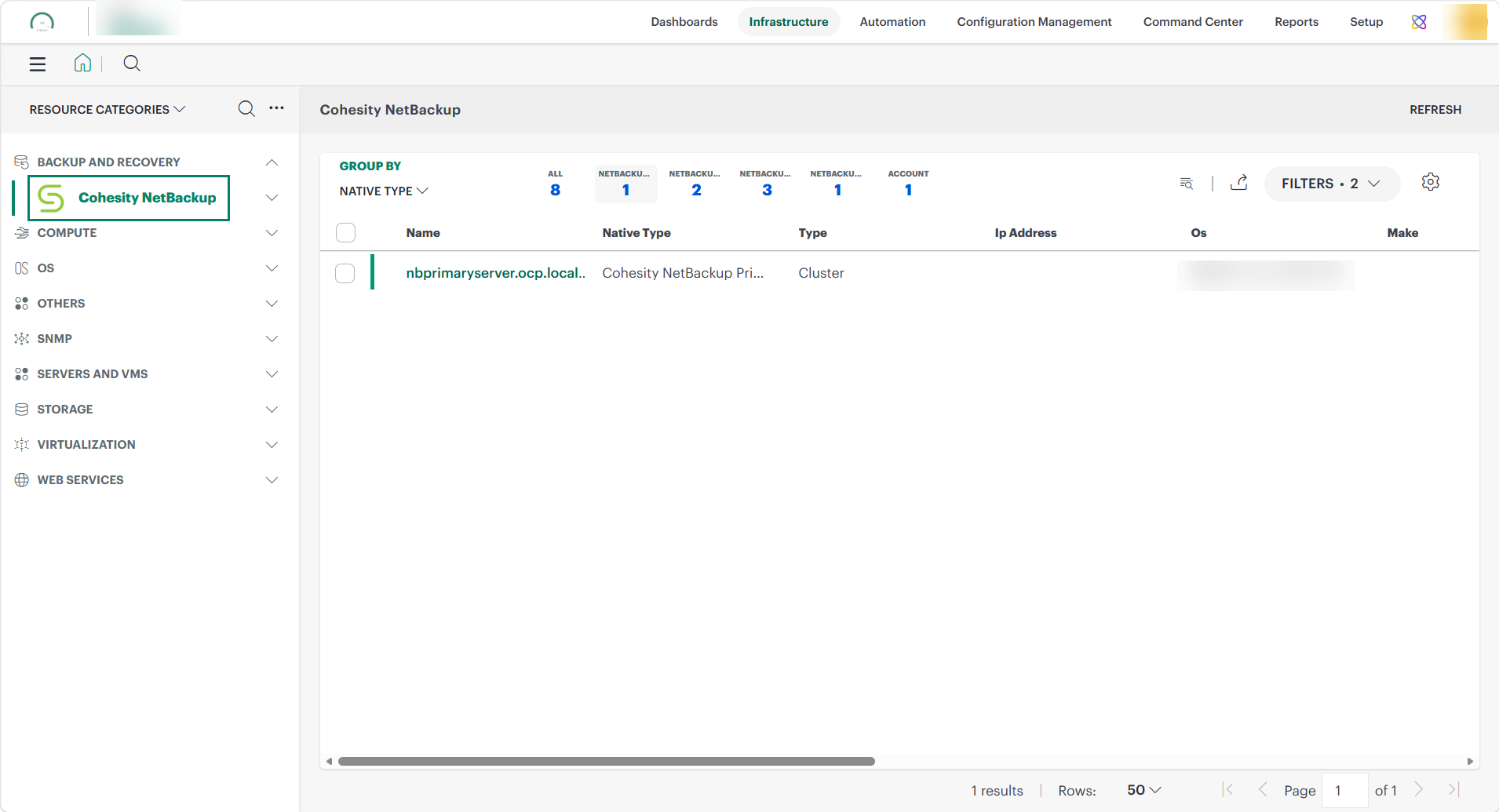

- Navigate to Infrastructure > Search > BACKUP AND RECOVERY > Cohesity NetBackup. The Cohesity NetBackup page is displayed.
- Select the application on the Cohesity NetBackup page
- The RESOURCE page appears from the right.
- Click the ellipsis (…) on the top right and select View Details.

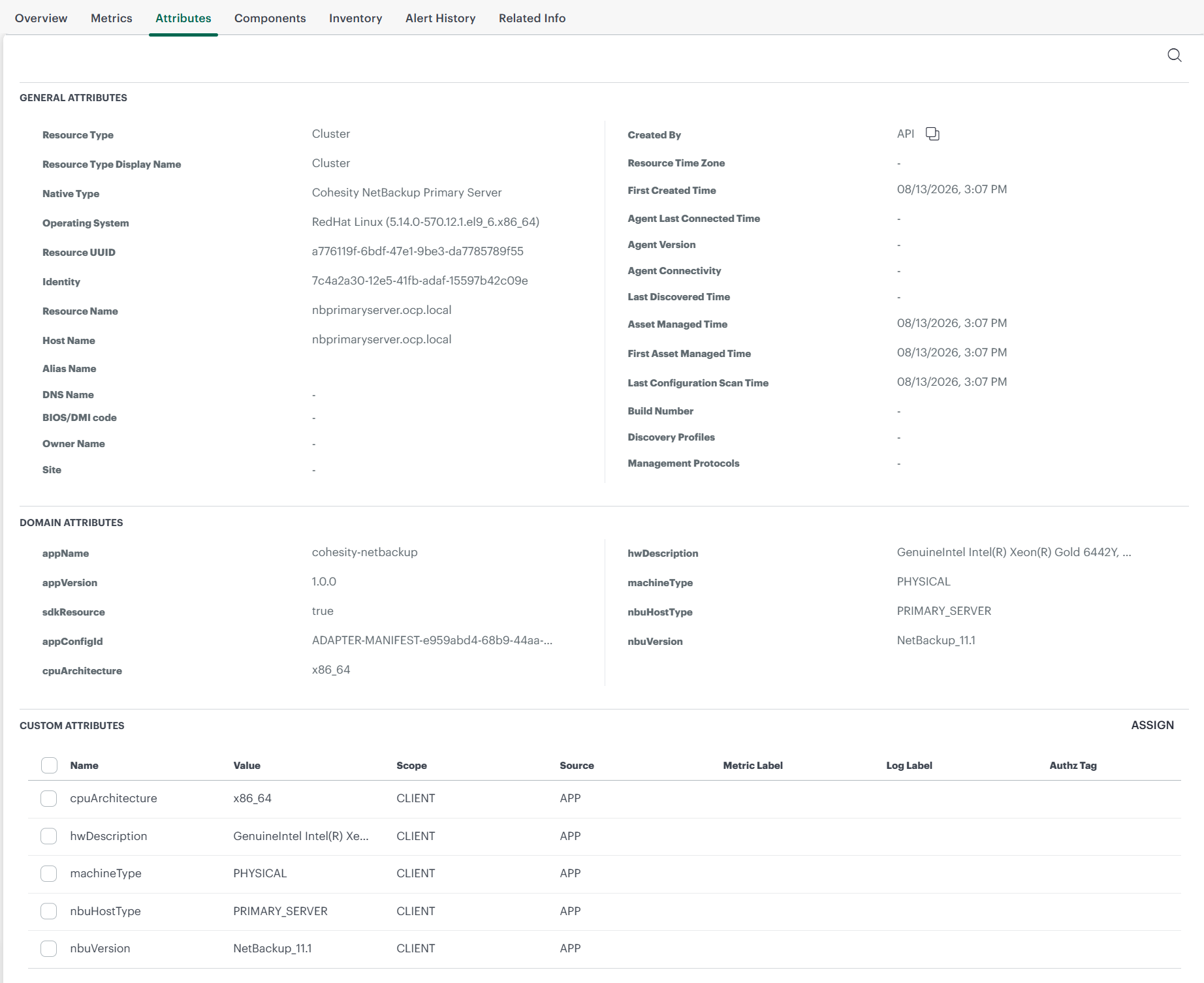

- Navigate to the Attributes tab to view the discovery details.

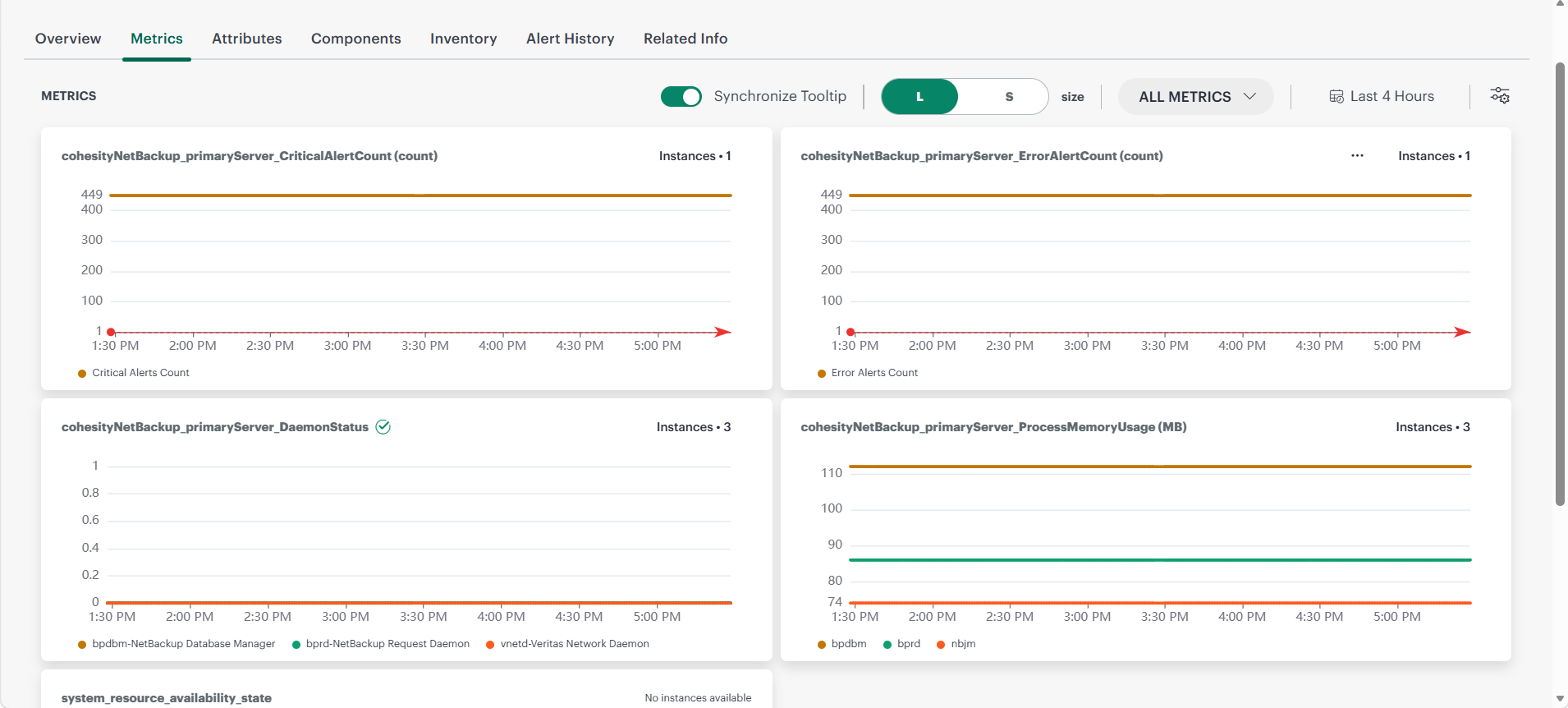

- Click the Metrics tab to view the metric details for Cohesity NetBackup.
View resource metrics
To confirm Cohesity NetBackup monitoring, review the following:
- Metric graphs: A graph is plotted for each metric that is enabled in the configuration.
- Alerts: Alerts are generated for metrics that are configured as defined for integration.
